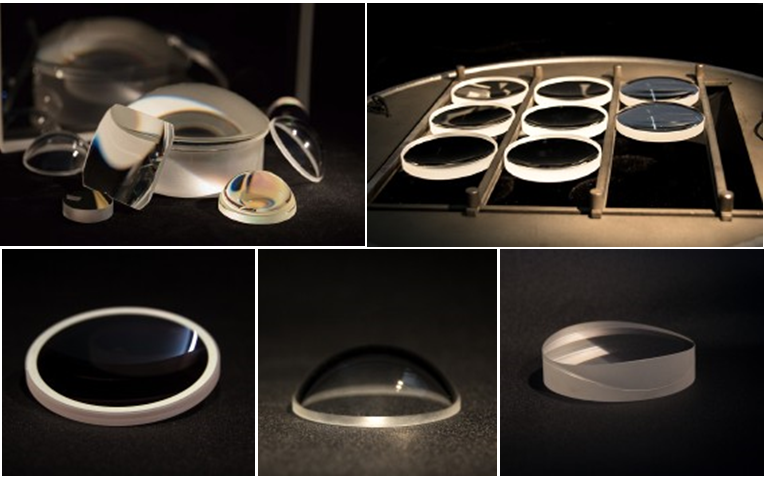

01 / Optical elements
Spherical & precision lenses
For optical parts where centering accuracy sets the starting point for every following process.
CenterMoon芯取定心仪
CenterMoon芯取定心仪
Explore CenterMoon transmission, transmission/reflection, digital and dual-path centering solutions for lens edging and optical alignment.
Measurement intelligence for the next generation of optics
CM / PRODUCT SERIES
CenterMoon centering series
optical axis
centering measurement
01Precision meets process confidence
Product portfolio
Four ways to bring alignment into production.
Choose a transmission, integrated transmission/reflection, or dual-path instrument, then add the digital centering system when image-based measurement and traceable records are needed.

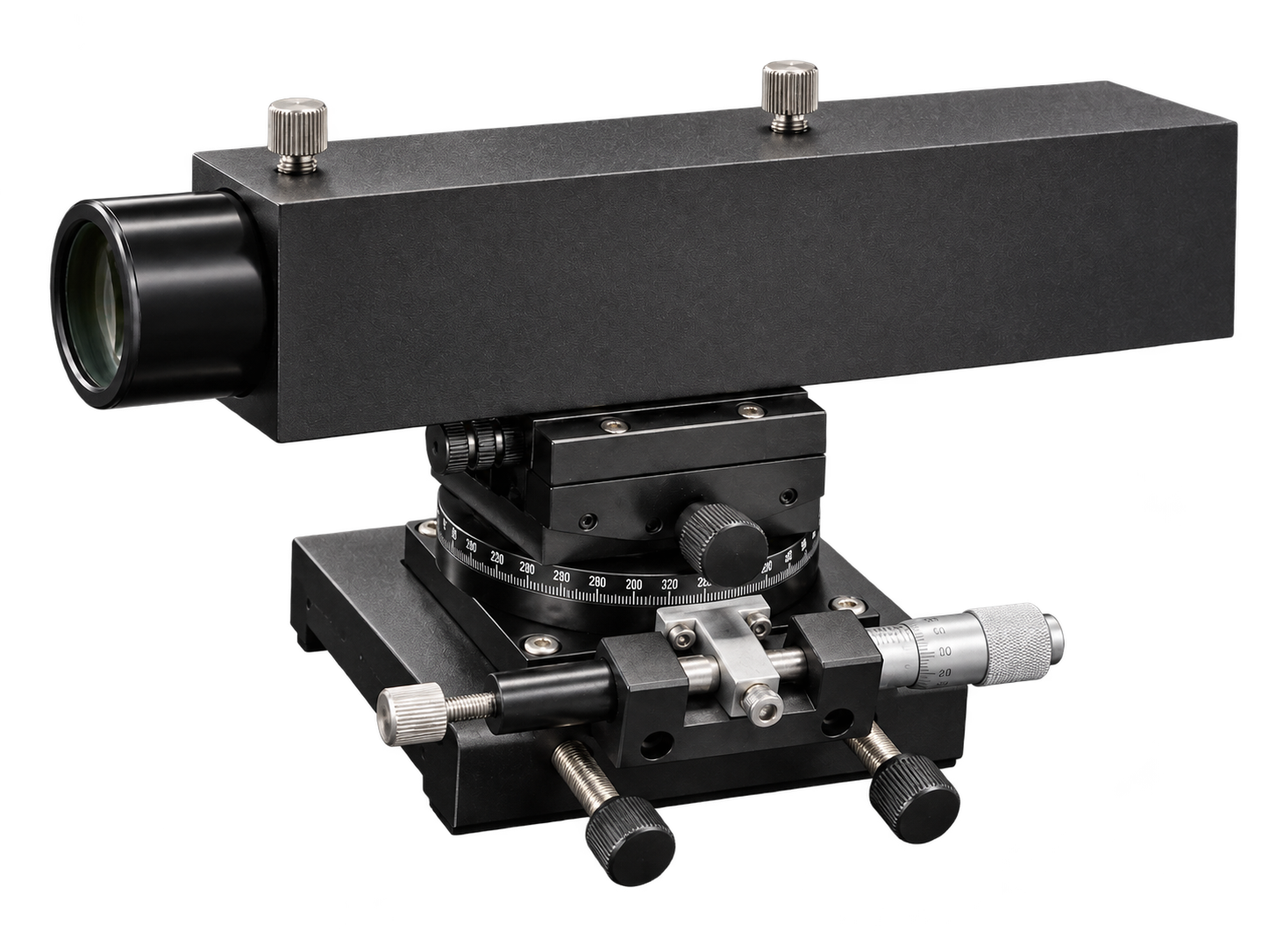

TCI-0101 / TCI-01
Transmission Centering Instrument
A dependable transmission platform for clear optical-axis alignment before the next process.
View product details ↗

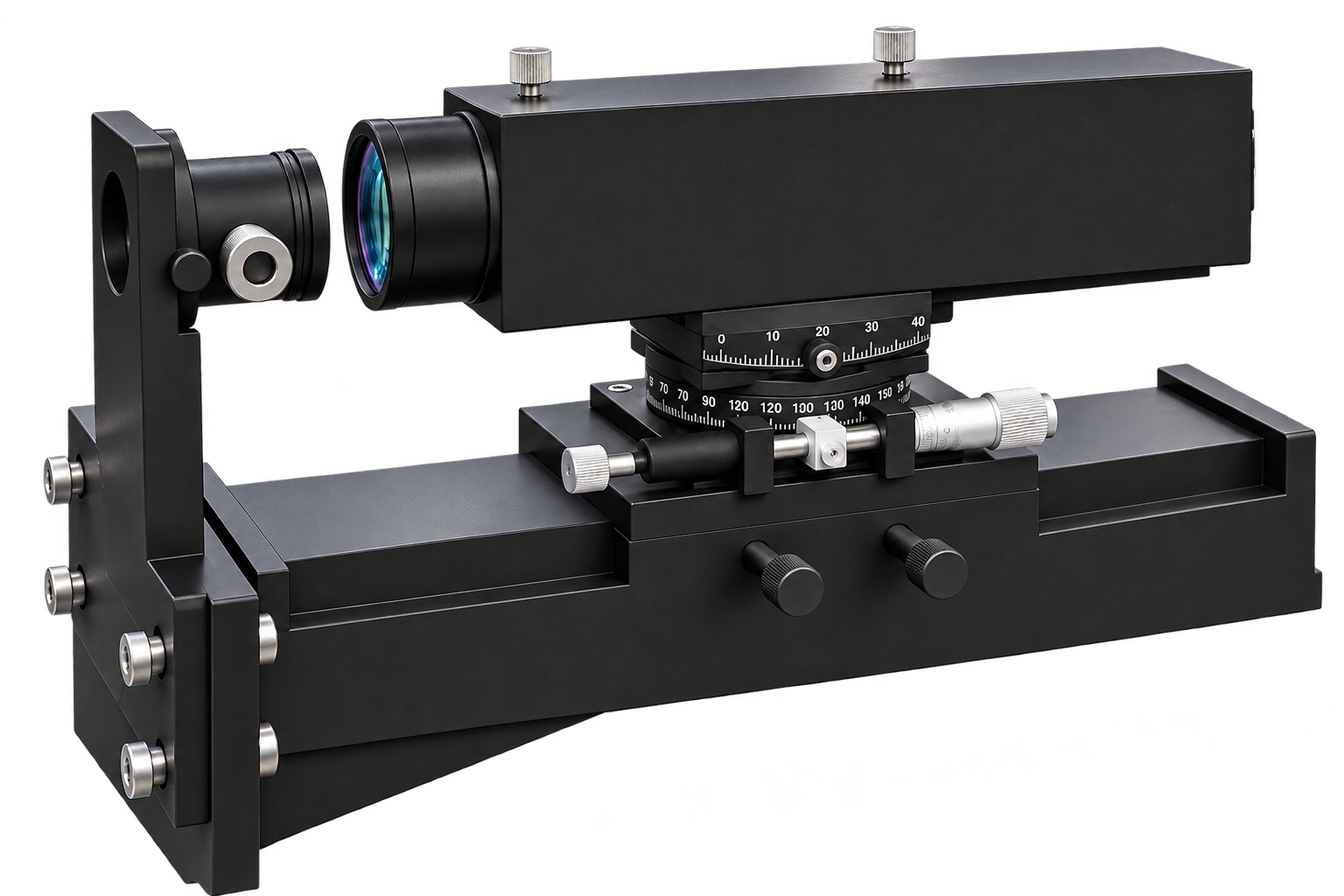

TRCI-0202 / TRCI-02
Transmission / Reflection Centering Instrument
One integrated system for optical parts that require both transmitted and reflected reference signals.
View product details ↗

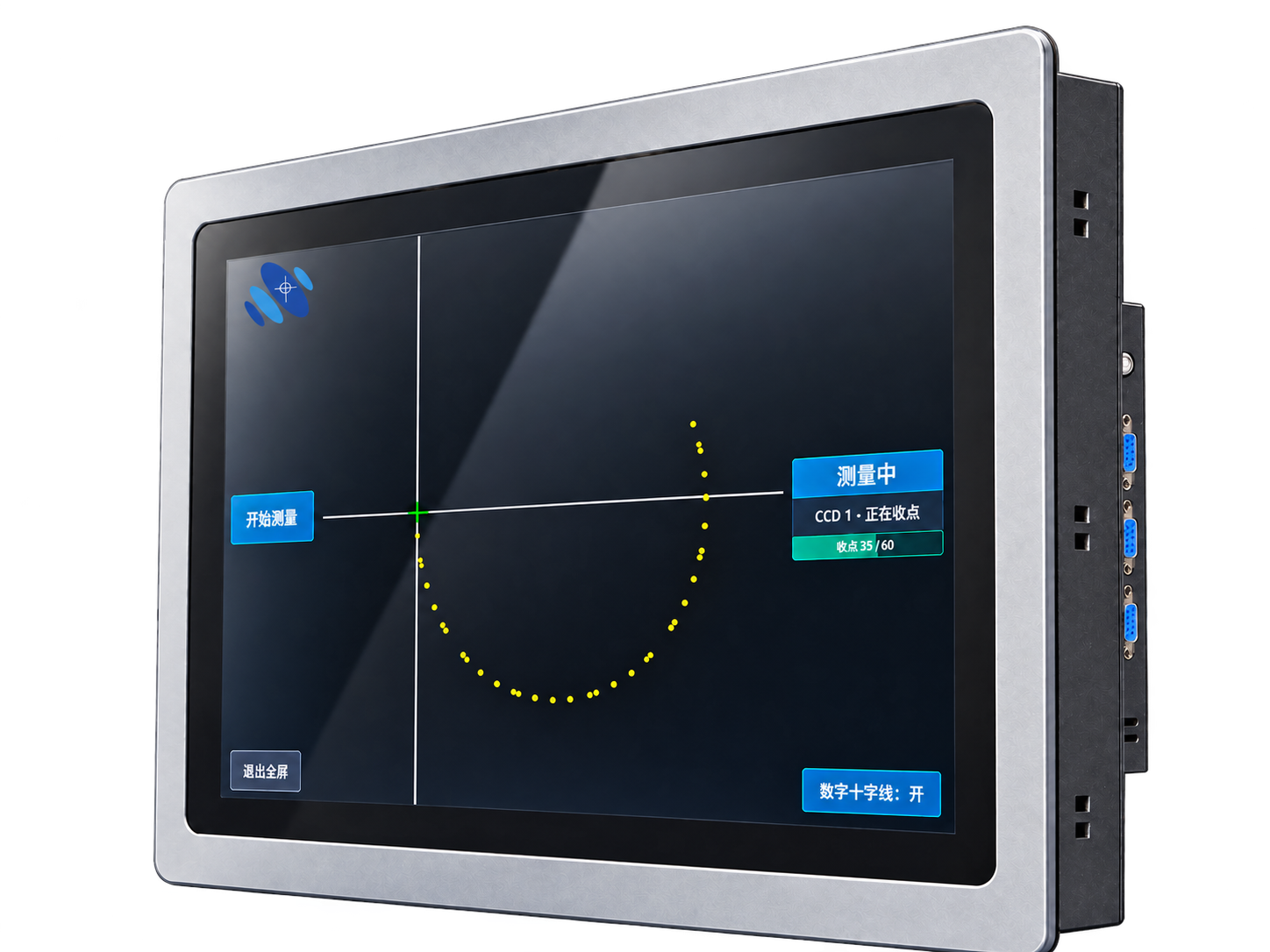

DTCI-0303 / DTCI-03
Digital Centering System
CenterMoon vision software can be paired with transmission, integrated transmission/reflection, or dual-path centering instruments for image-based measurement, automatic OK/NG decisions and traceable records.
View product details ↗

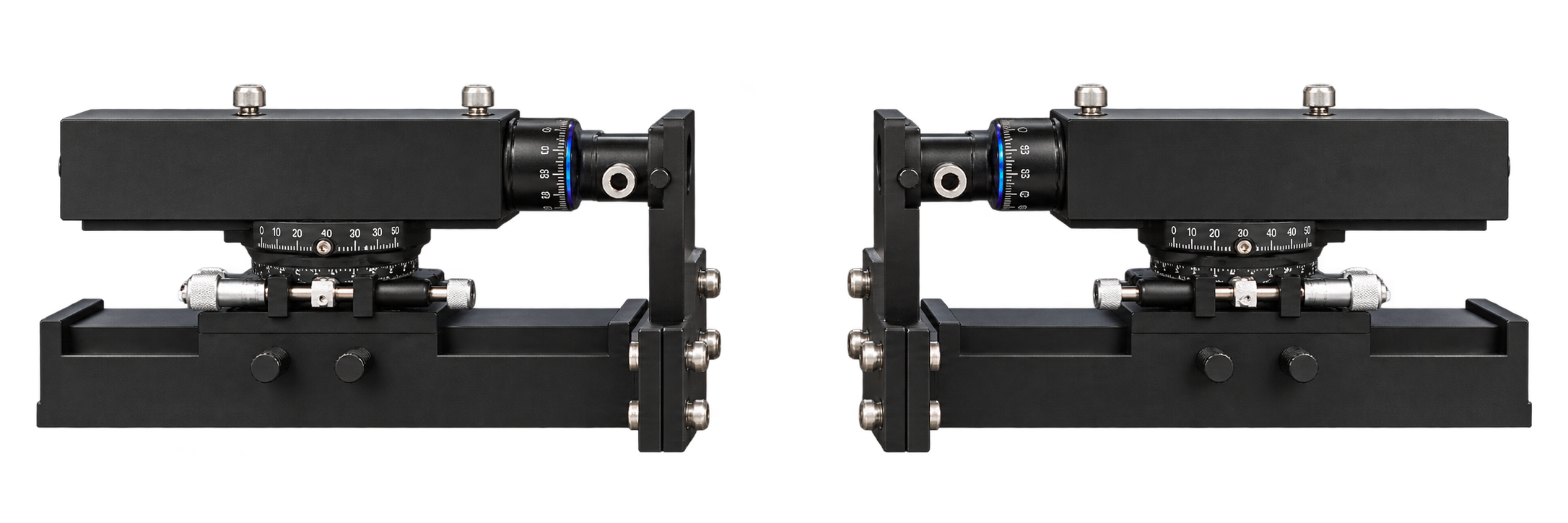

DTRCI-0404 / DTRCI-04
Dual-Path Transmission / Reflection Centering Instrument
Observe both sides of the lens and switch between transmission and reflection to assess overall transmitted error or center the front and rear surfaces separately.
View product details ↗How transmission centering works
The principle of
optical centering.
SIM / LIVE
Decentering 110″NG
FITTING CIRCLE / CENTER ORIGIN″
Enter an arcsecond value. The orbit is illustrative; 10″ or less is OK.
An illuminated crosshair passes through the lens and forms a transmitted image in the observation system. The rotating spindle provides the mechanical reference axis.
If the lens optical axis is offset from the spindle, the crosshair image traces a circle as the spindle turns. Adjust the lens position and rotate again until this circle becomes smaller and the image stays nearly still at the reference mark.
View product details ↗01
Mechanical reference
The rotating spindle defines the axis used for edging.
02
Transmitted image
The crosshair makes the lens optical axis visible.
03
Circular trace
The image movement reveals the direction and amount of decentering.
Optical processing range
One platform,
many optical forms.
From single optical elements to multi-lens assemblies, CenterMoon supports centering workflows across different diameters, curvatures, thicknesses and coating requirements.
Reference images · Product capability subject to drawing and sample confirmation
02 / Lens elements

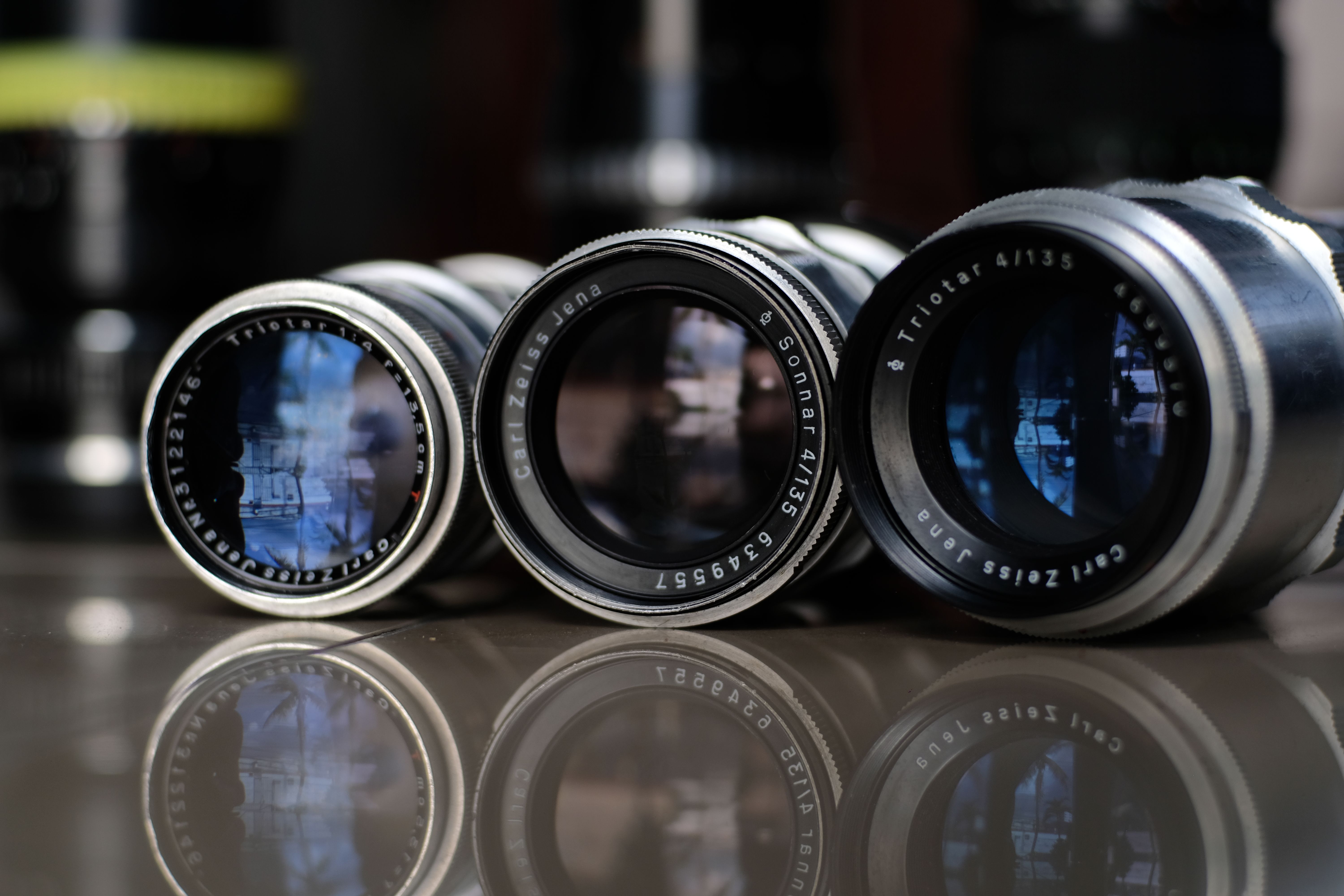

Convex, concave & custom profiles
Different geometries, one clear reference axis.
03 / Coated optics

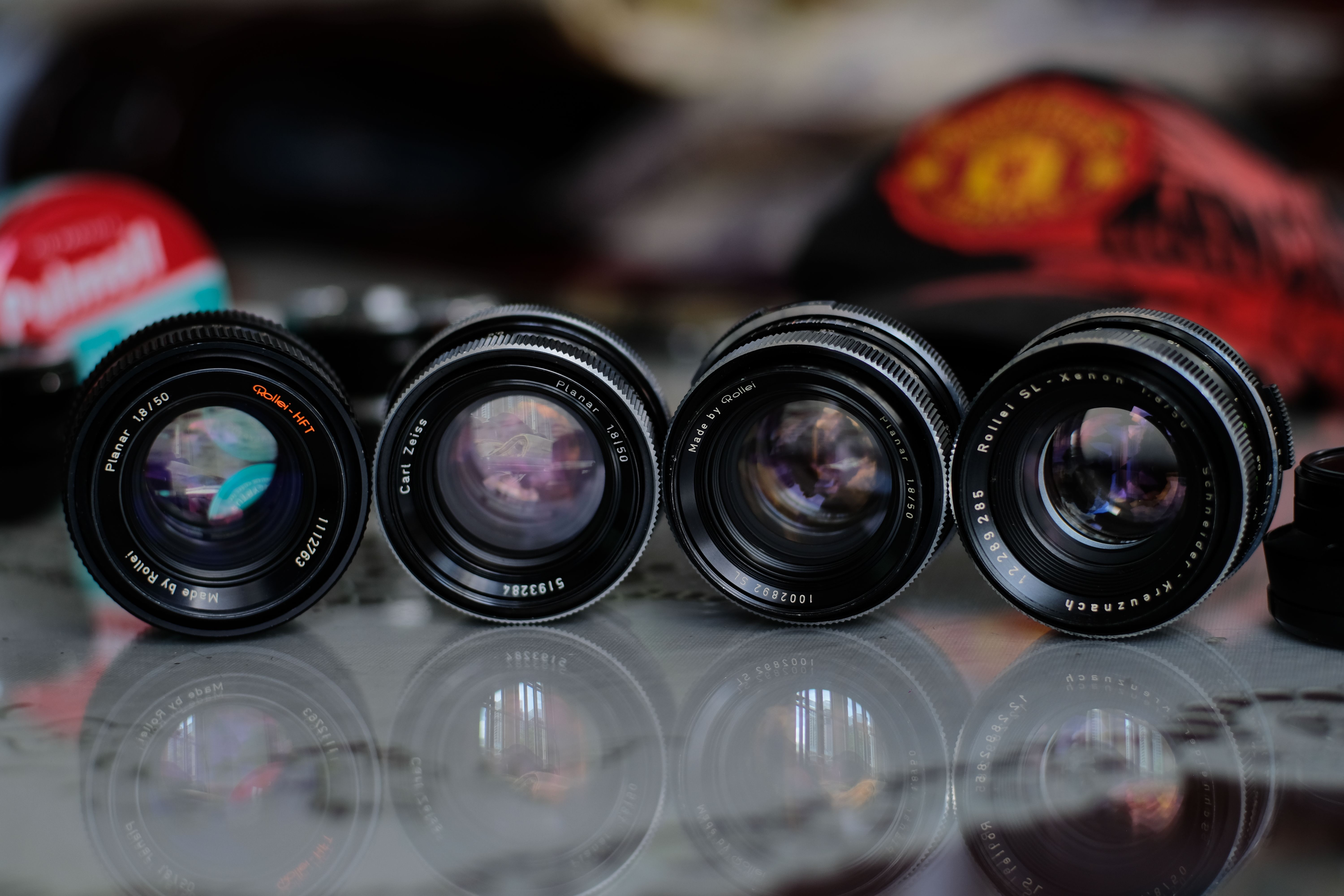

Surface-ready optical parts
Stable transmission measurement for coated and reflective surfaces.

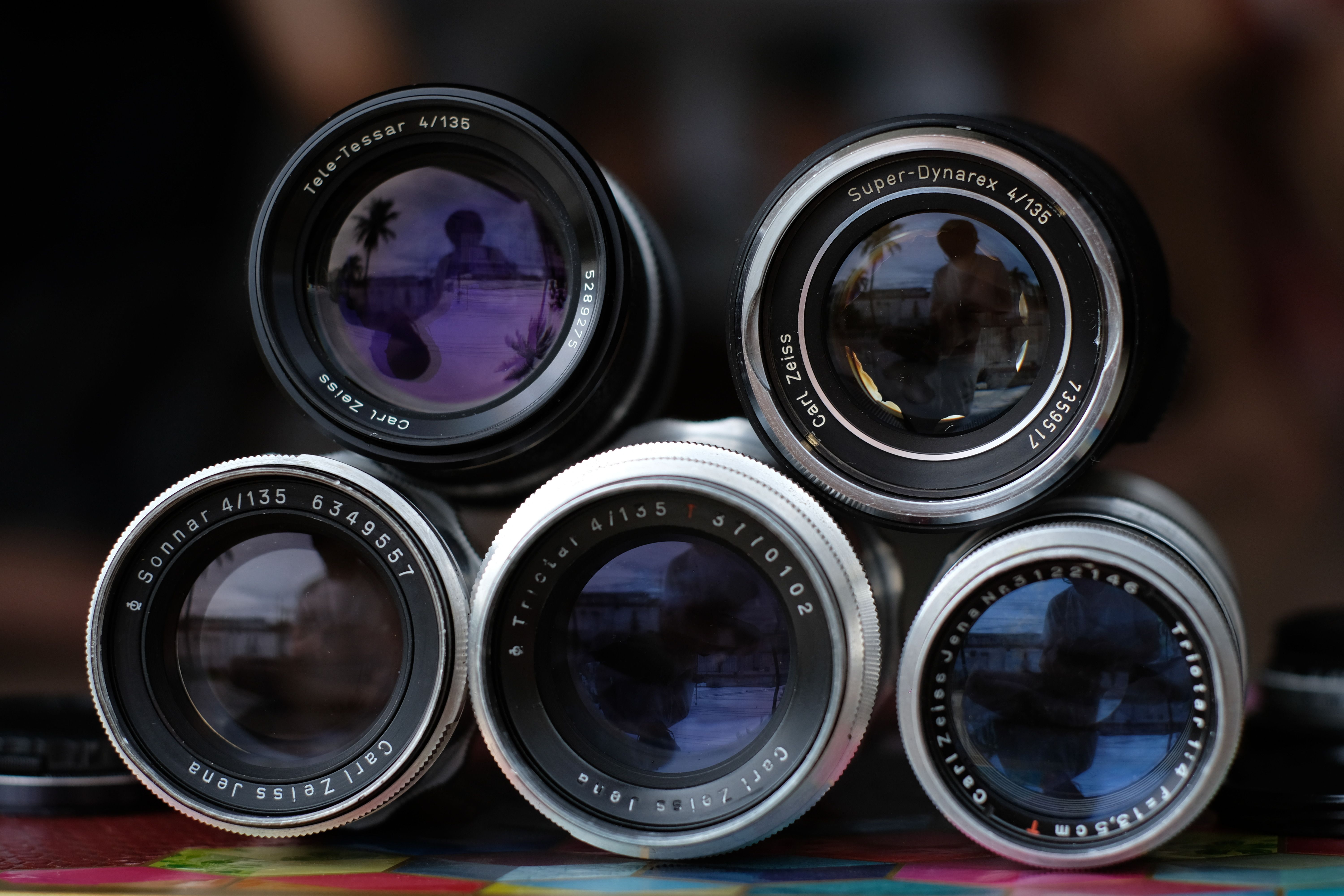

04 / Assemblies
Multi-lens systems
Bring individual elements and finished assemblies into a repeatable alignment workflow.
Share your drawing, sample or target specification with our team.
About CenterMoon
Precision is
our starting point.
Founded in 2008, CenterMoon designs and manufactures centering instruments for optical production, with emphasis on reference-axis control, repeatable setup and practical operator use.
To find the true center of every lens.
CenterMoon systems are used from optical alignment through core grinding and edging. More than 90 optical lens manufacturing plants in China use CenterMoon equipment as part of their centering workflow.
We do not build measurement systems to sit beside production. We build them to move precision into the process itself.
Talk to our team ↗
Every lens is like a moon. We find its true center.
2008Founded with one clear focus
90+Optical plants in China using CenterMoon
01Specialized in centering instruments
Optical ecosystem
Used by 100+
optical factories in China.
More than 100 optical factories across China have purchased and use CenterMoon centering instruments. Our customers include companies in Zhongshan, Foshan, Nanyang, Shangrao, Xi’an, Kunming and Changchun. Our equipment supports their daily lens processing and centering inspection.
Industry references · Customer logos shown with permission◌
宇川光学YUCHUAN OPTICSPrecision components
◌
舜宇光学SUNNY OPTICALOptical systems
◌
福晶科技CASTECHPhotonics & optics
◌
蓝特光学LANTE OPTICSOptical products
◌
永新光学YO: NOGPrecision optics
◌
联创电子LCEOptical industry
In the field
Precision,
where it matters.
From individual lens processing to full production lines, CenterMoon is present where optical teams turn measurement into performance.
90+ optical plants across China · Field applications
FIELD / 0101

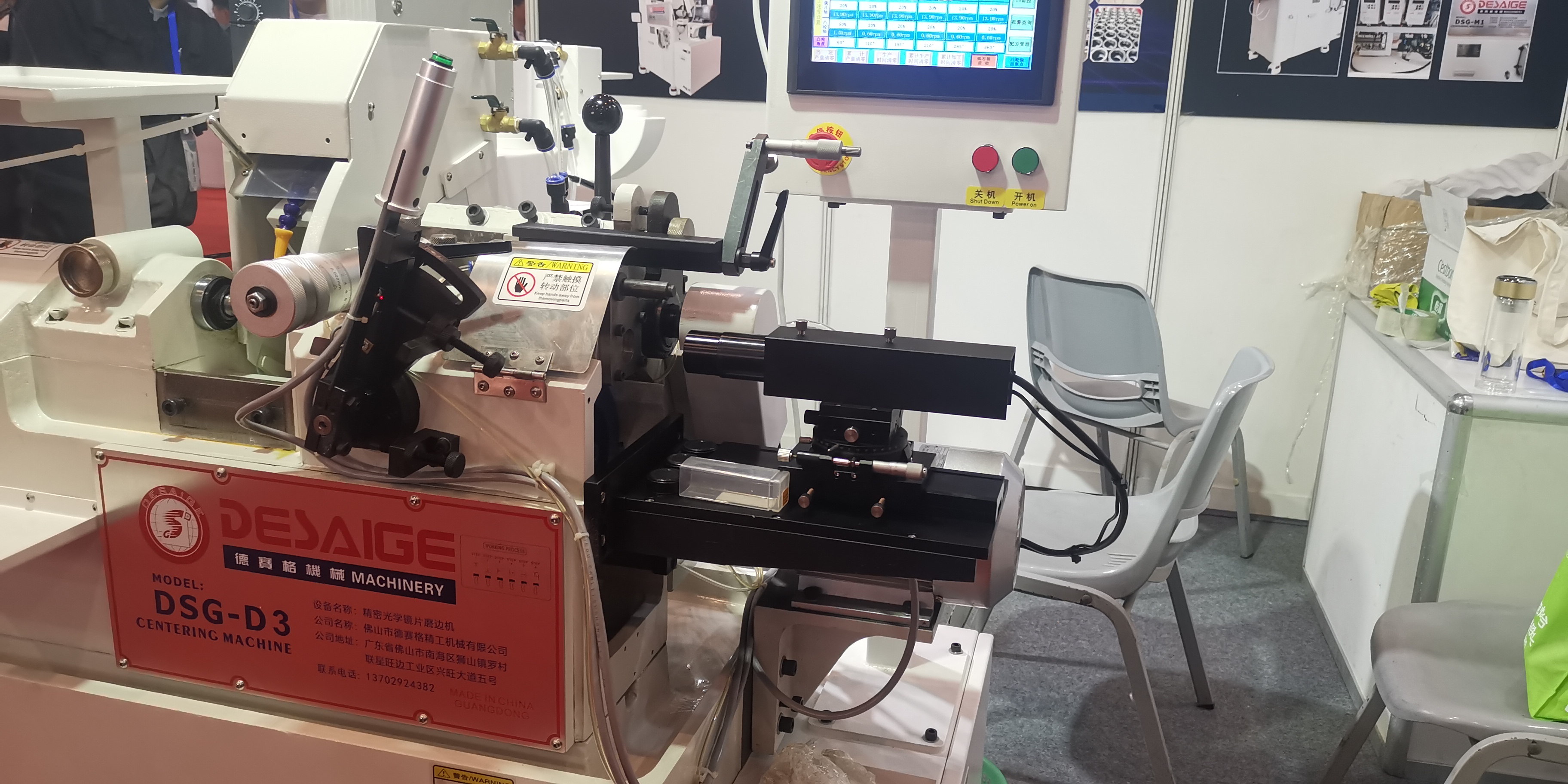

Optical factory partner 01
Centering setup / Photo slot
FIELD / 0202

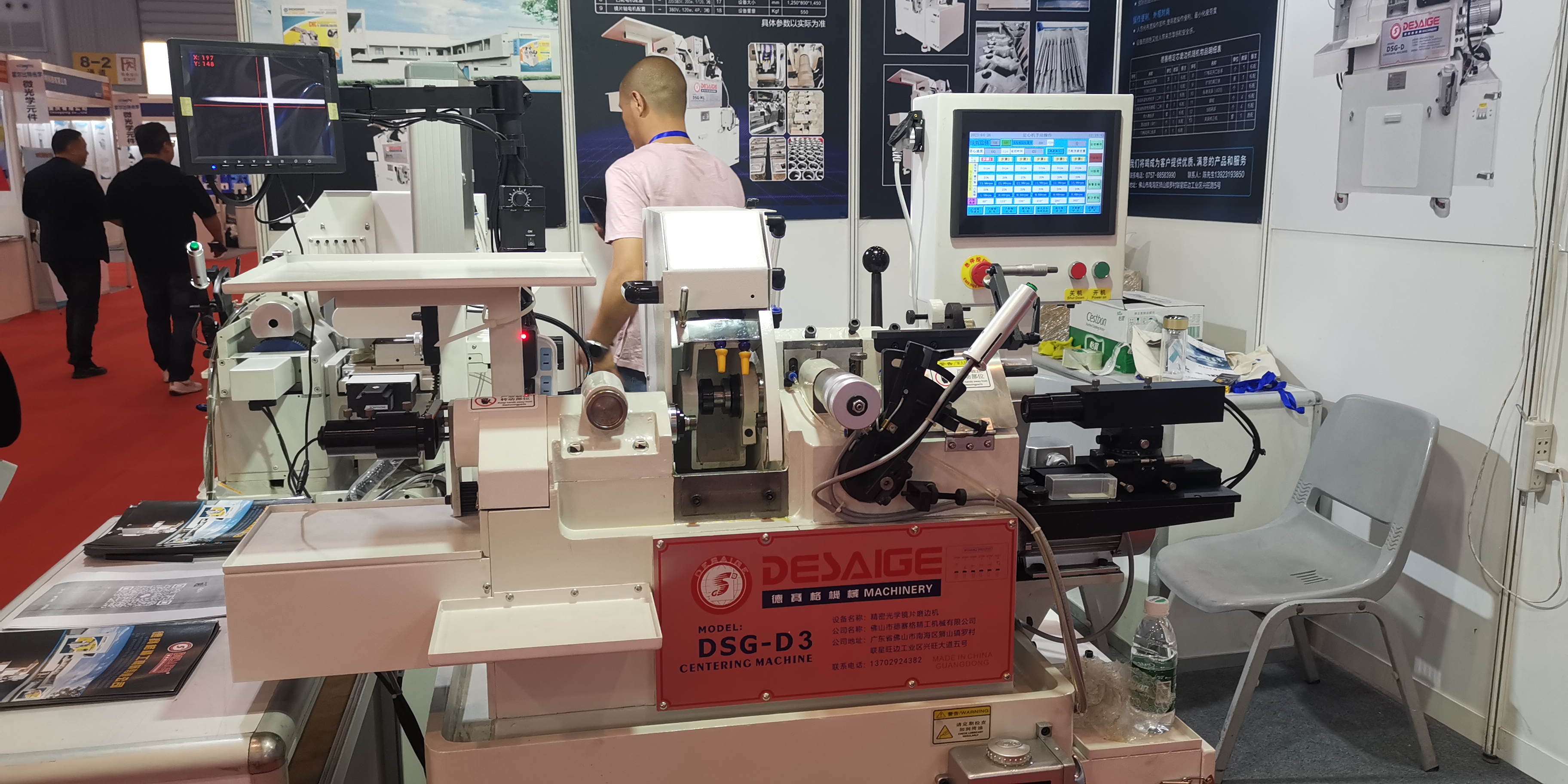

Optical factory partner 02
Lens edging line / Photo slot

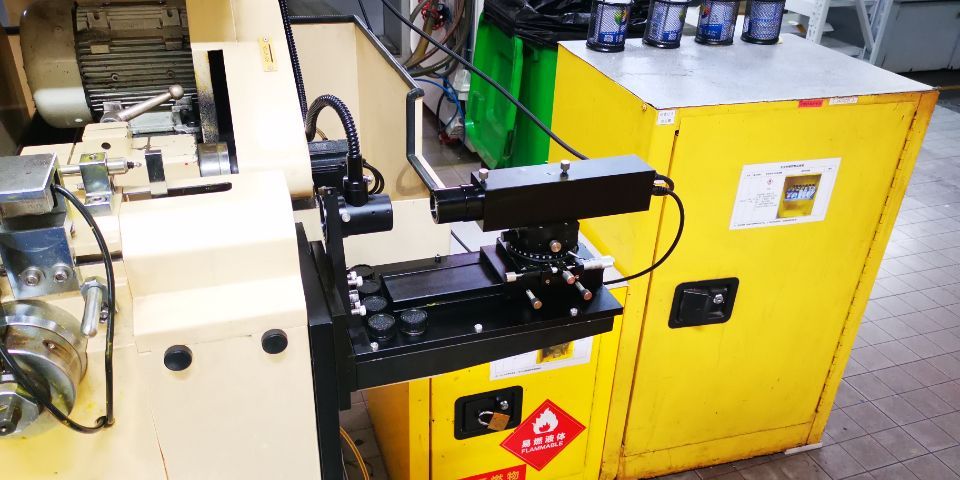

FIELD / 0303
Optical factory partner 03
Transmission measurement / Photo slot

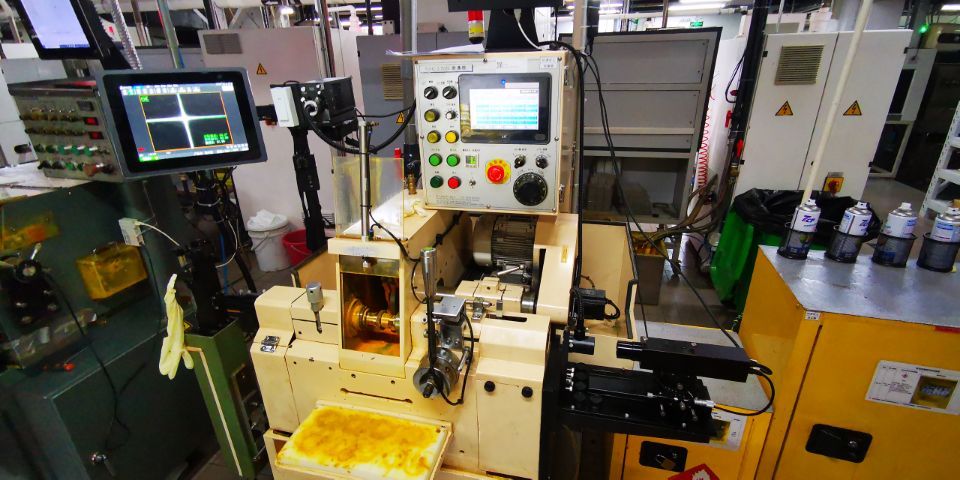

FIELD / 0404
Optical factory partner 04
Operator workflow / Photo slot
FIELD / 0505

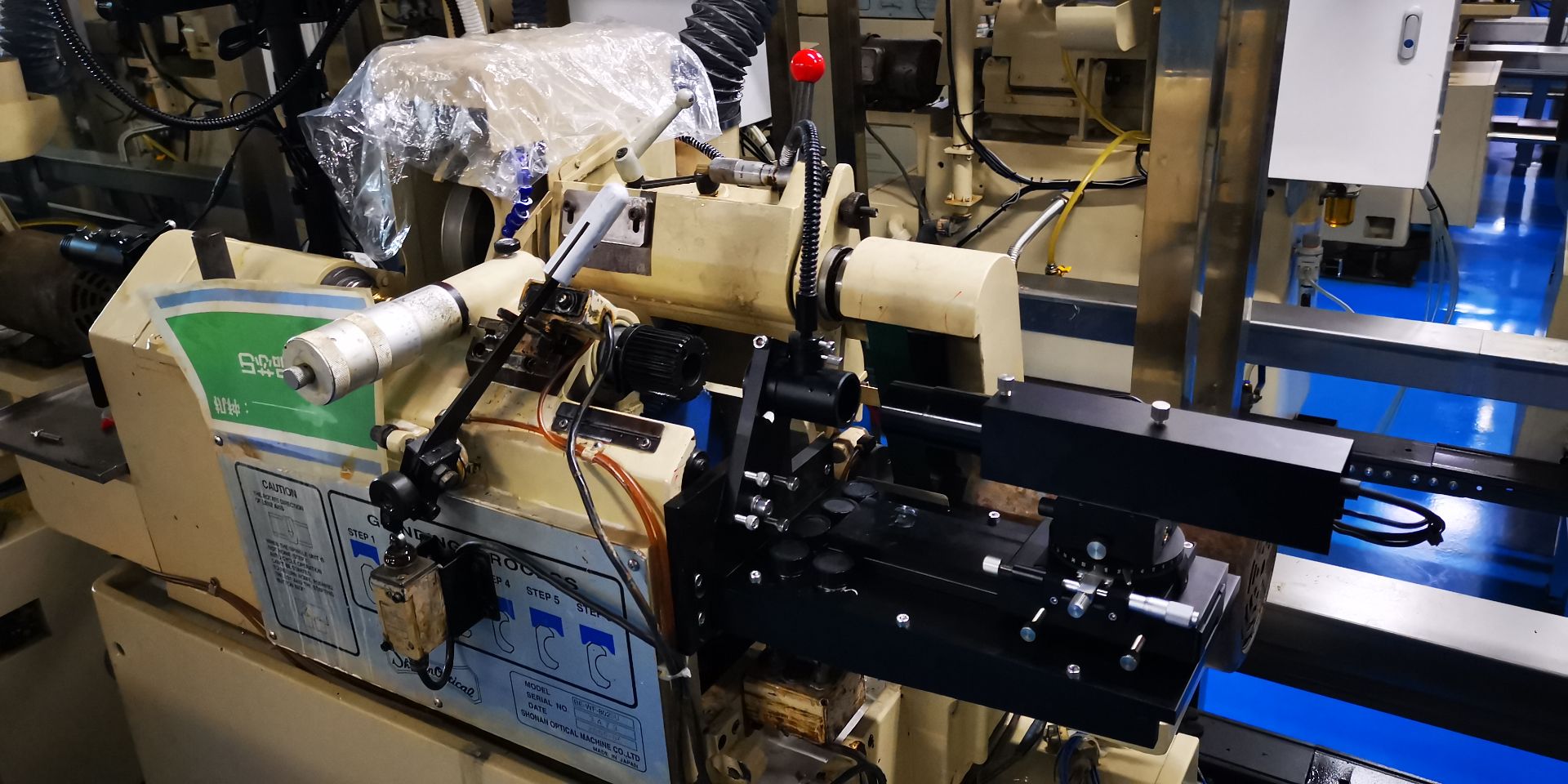

Optical factory partner 05
Production floor / Photo slot

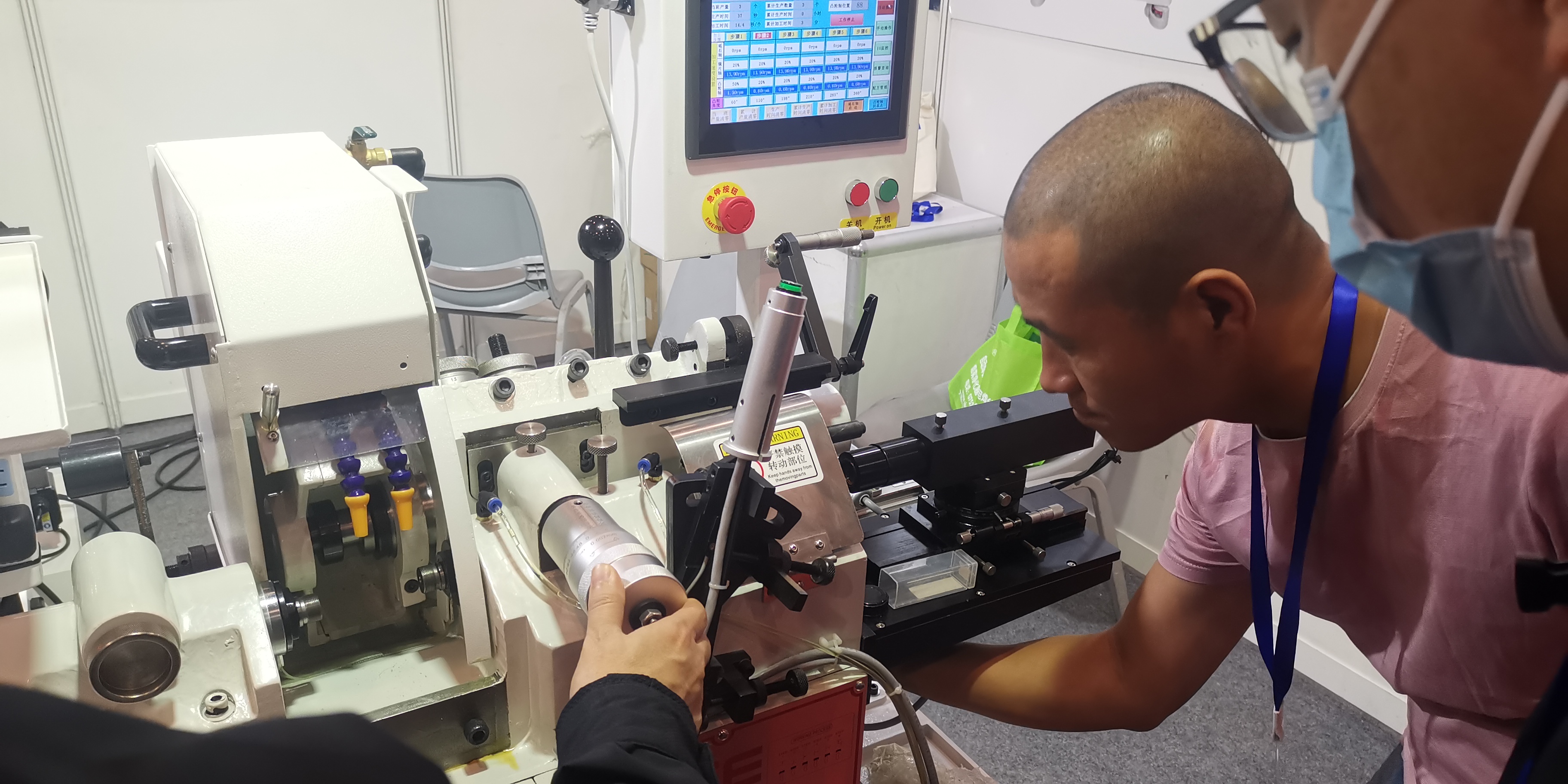

FIELD / 0606
Optical factory partner 06
Final alignment / Photo slot
Photo gallery ready for authorized factory images and confirmed partner names.
EDGING MACHINE COMPATIBILITY
Made to fit
your edging machine.
CenterMoon centering instruments can be installed on the edging-machine brands listed below and on many other models. Contact us to confirm the mounting interface and configuration for your machine.
01
时代
SIDAI PRECISION
SUPPORTED
02
光进
KWANGJIN
SUPPORTED
03
管野
SUPPORTED
04
鼎坚
SUPPORTED
05
湘南
SHONAN
SUPPORTED
06
光维
SUPPORTED
07
德赛格
SUPPORTED
08
中村留
SUPPORTED
09
尚善
SUPPORTED
Want to know if your edging machine can be fitted? Call 15523339843.
Compatibility and mounting method depend on the specific machine model and configuration.Start a conversation
Bring your
axis into focus.
Tell us the model of your edging machine. Please also send the drawing, optic diameter, surface form, material, coating condition and target process step so we can recommend a suitable setup.
